Mechanical Quality Guarantee

1. Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.

2. All parts on forming table are easy to access for maintenance.

3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.

Production Efficiency

1. Production output up to 76,800 cups per shift (8 hours), up to 5.88 million cups per month (3 shifts).

2. Percentage of pass is higher than 99% under normal production.

3. One operator can handle several machines at the same time.

Mechanical Behavior

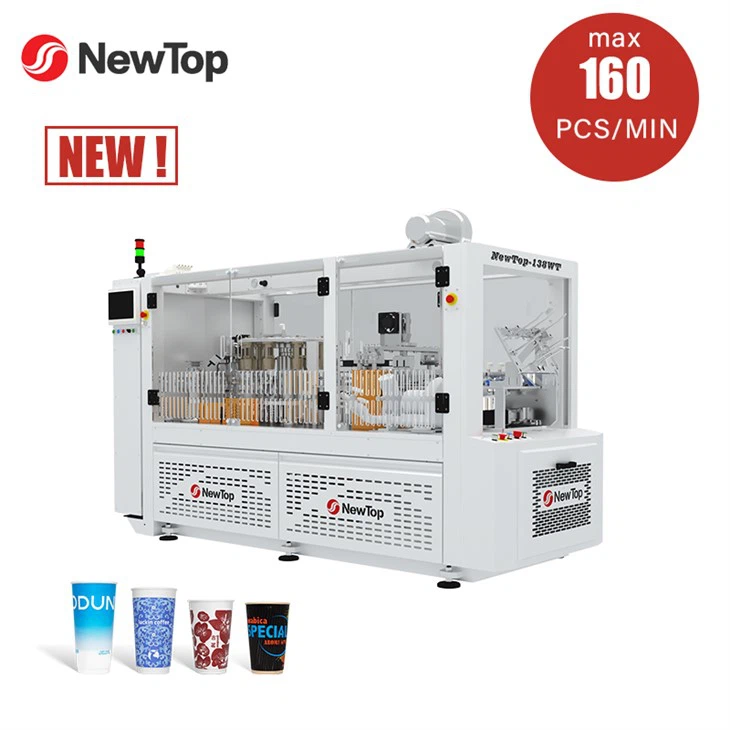

The NEWTOP-138WT high speed intelligent paper cup sleeve machine is a model used for making double-walled cups. Based on the NEWTOP-118S platform, this new generation double-walled cup forming equipment utilizes a rotary paper suction and in-line feeding mechanism, matched with a dual-turntable process layout. It features EtherCAT high-speed bus communication technology, employing distributed clock synchronization and electronic cam coordinated control. Equipped with an online glue detection device, it uses a high-frame-rate industrial camera to monitor the glue coverage area in real time, and applies image algorithms to quantitatively analyze the glue layer distribution, eliminating defective products due to poor adhesion and ensuring stable product assembly quality. This machine is suitable for producing multi-specification paper cups with sleeves ranging from 6-20 OZ, and the sleeves can be made with flat or hollow processes, achieving a maximum production capacity of 160 pcs/min.

Remark: The actual production capacity is affected by various of factors and the data above is only for reference.

NEWTOP-138WT
Weight:	3300kg
Machine encasement dimensions:	3300 x 1600 x 2100mm
Connecting power:	Three-phase,380V, 15KW
Compressed air:	0.6-0.8MPa, 0.5m³/min
Production capacity:	160pcs/min
Paper types:	White board/ Grey board/ Corrugated board
Paper thickness:	0.2825-0.4075
Product range:	(D1) ф60-95mm (H) 60-170mm (D2) ф40-75mm
Long term magazine:	○
Control panel:	7 inches
Note: optional○ standard●

NEWTOP--138WT
