Mechanical Quality Guarantee

1. Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.

2. All parts on forming table are easy to access for maintenance.

3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.

Production Efficiency

1. Production output up to 96,000 cups per shift (8 hours), up to 7.7 million cups per month (3 shifts).

2. Percentage of pass is higher than 99% under normal production.

3. One operator can handle several machines at the same time.

Mechanical Behavior

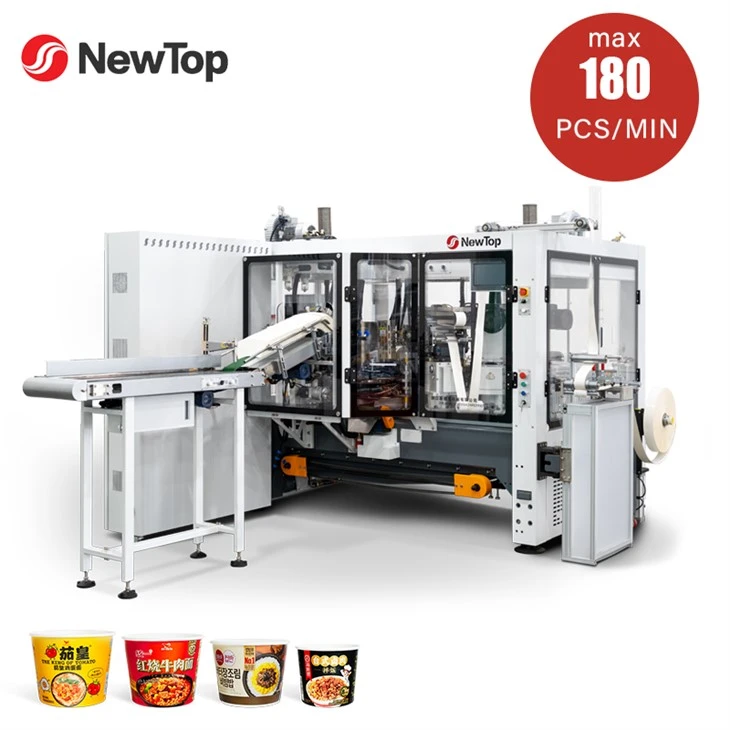

NEWTOP-228W horizontal type high speed intelligent paper cup machine adopts integrated layout on upper-side and lower-side of the table.This disposable paper bowl forming machine has the characteristics of high precision and high speed.The mold forming part is installed on the table, while the forming process is distributed around three independently driven turrets which are set in the way of 4-7-7 configuration. The main drive section under the table is connected by globoidal indexing cams and gears. The transmission parts are in a sealed-case and lubricated by spraying.This high speed paper cup make machine is controlled by PLC, the whole process is monitored by photoelectric sensors, feeding by sevro.The NEWTOP-228W high speed paper bowl make machine achieves a maximum production speed of 180 pcs/min, suitable for producing 11-43oz paper cups for both hot and cold cups.

Remark: The actual production capacity is affected by various of factors and the data above is only for reference.

NEWTOP-228W
Weight:	7500kg
Machine encasement dimensions:	3300 x 2140 x 2250mm
Connecting power:	Three-phase, 380V, 65KW
Compressed air:	0.5-0.7MPa, 0.6m³/min
Production capacity:	180pcs/min
Paper types:	Single PE / double PE / PLA
Paper thickness:	0.295-0.47mm
Product range:	(D1) ф100-150mm (H) 50-110mm (D2) ф80-120mm (h) 5-12mm
Long term magazine:	○
Control panel:	10.2 inches
Note: optional○ standard●
