Mechanical Quality Guarantee

1. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year.

2. All parts on forming table are easy to access for maintenance.

3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.

Production Efficiency

1. Production output up to 76,800 cups per shift (8 hours), up to 5.88 million cups per month (3 shifts).

2. Percentage of pass is higher than 99% under normal production.

3. One operator can handle several machines at the same time.

Mechanical Behavior

NEWTOP-FW125CWT servo paper cup and cup jacket machine is a new generation of paper cup jacket forming equipment developed on the platform of NEWTOP-FW125CWT servo paper cup machine, which adopts desktop layout, double turn table forming process layout and servo-driven structure, and the motion control system adopts the EtherCAT high-speed bus communication technology, decentralised clock mechanism, electronic cam technology, and a common DC bus solution,etc., to achieve the servo motor and servo motor forming process. The motion control system adopts EtherCAT high-speed bus communication technology, decentralised clock mechanism, electronic cam technology and common DC bus solution, etc. It achieves high-precision servo motor control of paper cup jacket forming, gluing, laminating and other key processes, and is suitable for the production of 16-42oz instant noodle bowls and paper bowls with jackets, with the highest speed up to 160pcs/min.

Remark: The actual production capacity is affected by various of factors and the data above is only for reference.

NEWTOP-FW125CWT
Weight:	3200kg
Machine encasement dimensions:	2300 x 1900 x 2100mm
Connecting power:	Three-phase,380V, 20KW
Compressed air:	0.6-0.8MPa, 0.5m³/min
Production capacity:	160pcs/min
Paper types:	White board/ Grey board/ Corrugated board
Paper thickness:	0.2825-0.4075
Product range:	(D1) ф80-130mm (H) 110-210mm (D2) ф60-100mm (h) 8-12mm
Long term magazine:	○
Control panel:	7 inches
Note: optional○ standard●

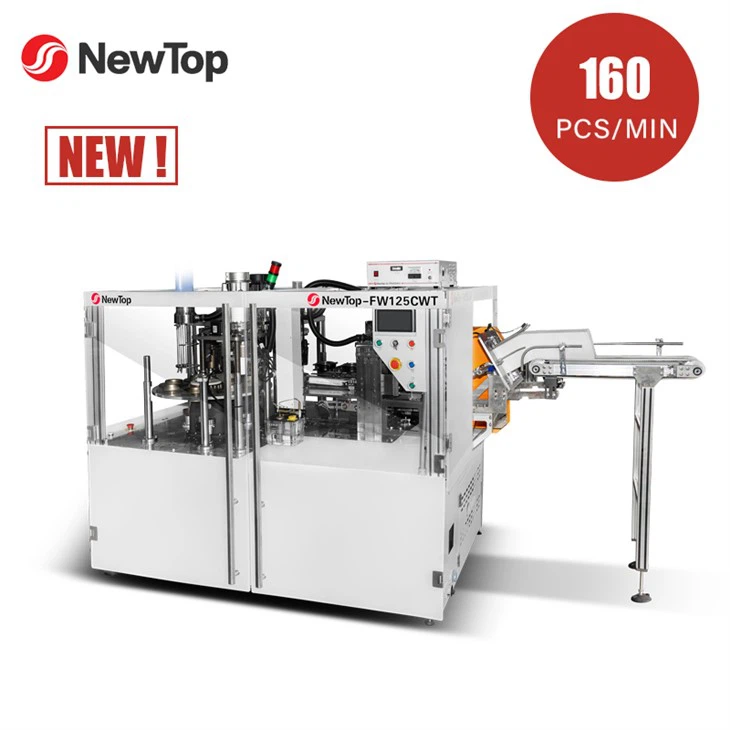

NEWTOP--FW125CWT
