NEWTOP-FW125C
YOUTUBE:
|
1. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year. 2. All parts on forming table are easy to access for maintenance. 3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil. |
1. Production output up to 67,200 cups per shift (8 hours), up to 5.14 million cups per month (3 shifts). 2. Percentage of pass is higher than 99% under normal production. 3. One operator can handle several machines at the same time. |
Mechanical Quality Guarantee
Production Efficiency
Mechanical Behavior

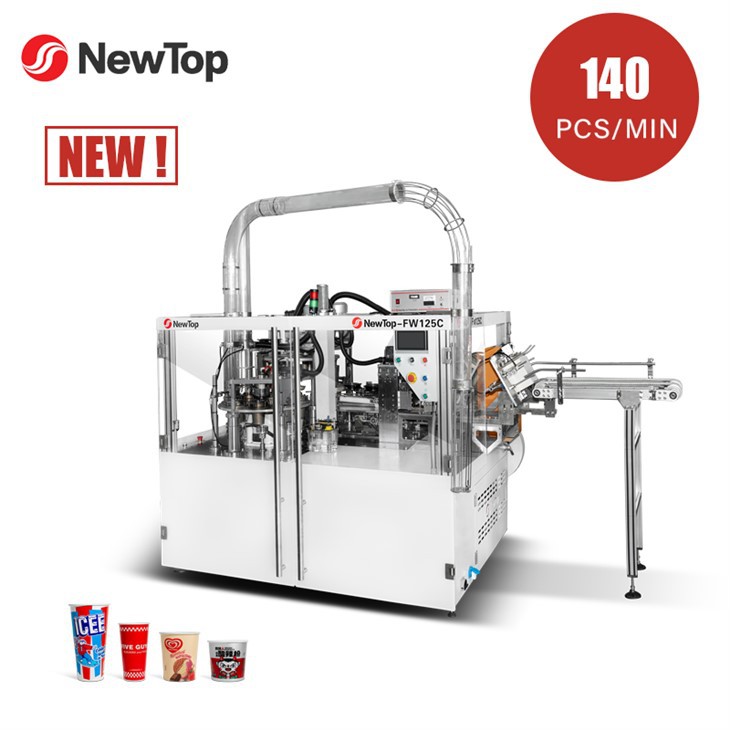

NEWTOP-FW125C is good for making 16-42oz paper cups, and the production speed can reach up to 140pcs/min.NewTop is a innovative paper cup machin manufacturer utilize servo to make the machine more stable and smarter.
Remark: The actual production capacity is affected by various of factors and the data above is only for reference.
|
NEWTOP-FW125S |
|
|
Weight: |
3200 kg |
|
Machine encasement dimensions: |
Machine: 2300 x 1900 x 2100mm (collection table 1230 x 610 x 1900mm) With visual system: 3100 x 1600 x 2350mm (collection table 1230 x 610 x 1900mm) |
|
Connecting power: |
Three-phase 380V, 37KW |
|
Compressed air: |
0.6-0.8MPa, 0.5m³/min |
|
Production's max capacity: |
140 pcs/min |
|
Paper types: |
Single PE / double PE / PLA |
|
Paper thickness: |
0.2825-0.5025mm |
|
Product range: |
(D1) ф80-130mm (H) 110-210mm (D2) ф60-100mm (h) 8-12mm |
|
Visual inspection system: |
○ |
|
Bottom heating: |
Assembly● |
|
Long term magazine: |
○ |
|
Control panel: |
7 inches |
|
Note: optional○ standard● |
|
Product Details
SINGLE ROTARY PAPER SUCTION
HOT AIR+ULTRASONIC
TRIPLE HOT AIR
SERVO TURNTABLE SECTION
