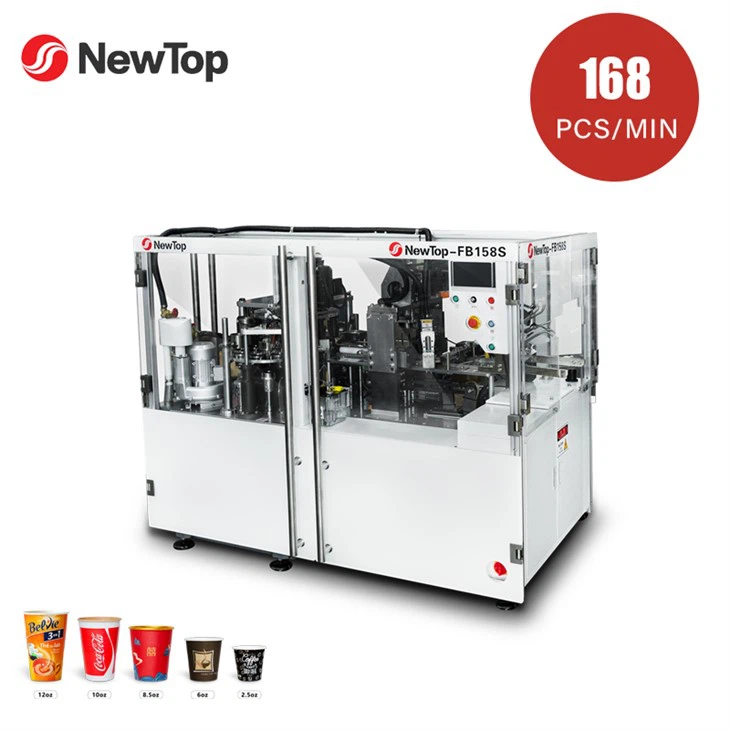

New Servo Paper Cup Machine NEWTOP-FB158S
|
1. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year. 2. All parts on forming table are easy to access for maintenance. 3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil. |
1. Production output up to86,400 cups per shift (8 hours), up to 6.6 million cups per month (3 shifts). 2. Percentage of pass is higher than 99% under normal production. 3. One operator can handle several machines at the same time. |
Mechanical Quality Guarantee
Production Efficiency
Mechanical Behavior
2024 New type machine is coming!NEWTOP-FB158S servo paper water cup forming machine is an efficient, intelligent and environmentally friendly carton cup making machine.Disposable cup forming machine servo driven function has advantages such as making the machine overall smarter and more efficiently regulated.It adopts digital control mode and uses servo motor to control the paper cup forming process with high precision to achieve fast, accurate and stable paper cup forming effect. The control part integrates various techniques such as Ethernet real-time control technology,distributed clock mechanism, electronic cam technology and common DC bus to control efficiently stably and precisely. This machine is good for making 2.5-12oz paper cups, and the production speed can reach up to 168pcs/min.NewTop is a innovative paper cup machin manufacturer utilize servo to make the machine more stable and smarter.
|
NEWTOP-FB158S |
|
|
Weight: |
2500 kg |
|
Machine encasement dimensions: |
2300 x 1600 x 2000mm (collection table 1230 x 610 x 1900mm) |
|
Connecting power: |
Three-phase 380V, 22KW |
|
Compressed air: |
0.5-0.7MPa, 0.3m³/min |
|
Production capacity: |
168 pcs/min |
|
Paper types: |
Single PE/Double PE |
|
Paper thickness: |
0.22-0.35mm |
|
Product range: |
(D1) ф50-85mm (H) 40-110mm (D2) ф35-60mm (h) 5-8mm |
|
Visual inspection system: |
○ |
|
Bottom heating: |
Assembly● |
|
Long term magazine: |
○ |
|
Control panel: |
7 inches |
