Mechanical Quality Guarantee

1. Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.

2. All parts on forming table are easy to access for maintenance.

3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.

Production Efficiency

1. Production output up to 28,000 cups per shift (8 hours), up to 2.2 million cups per month (3 shifts).

2. Percentage of pass is higher than 95% under normal production.

3. One operator can handle several machines at the same time.

Mechanical Behavior

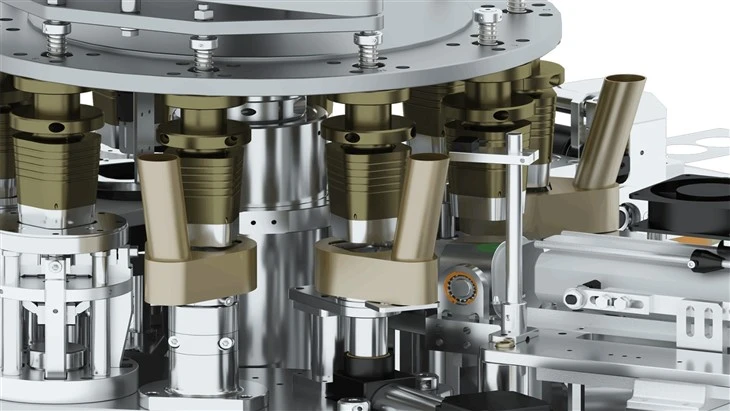

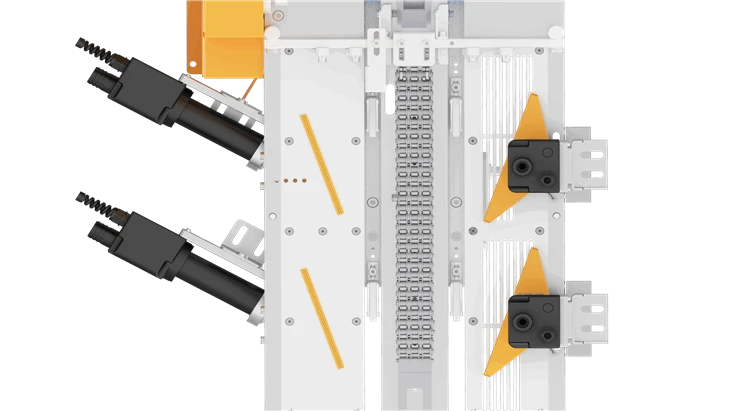

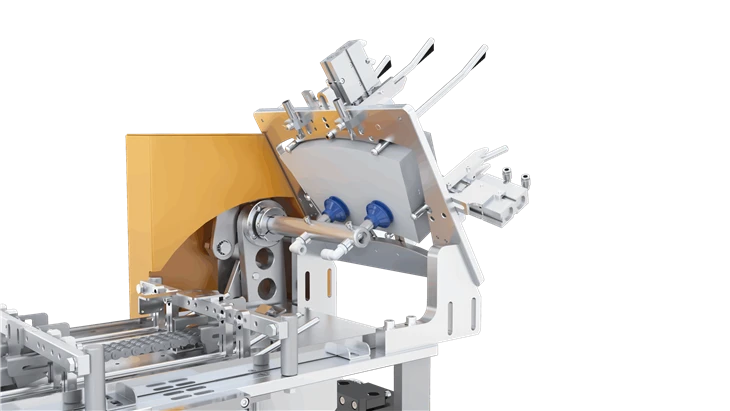

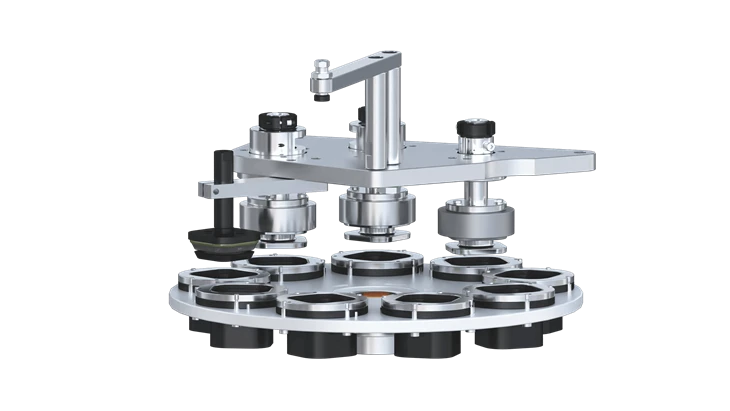

The NEWTOP-168D high speed intelligent paper cup machine inherits the high speed and stable platform of the NEWTOP-168S9 model, cleverly separating the transmission mechanism from the execution mecha nism. The transmission mechanism is designed with a 'one horizontal, two vertical' dynamic shaft layout, while the execution mechanism uses a straight-line suction paper and cup forming technology. Combined with a dual-turntable layout of 10-station male molds and 9-station female molds, it achieves multi-sta tion curling (≥3), ensuring stable forming dimensions, high curl rate, and strong paper adaptability for the paper containers. This model is highly flexible and offers multiple options to meet different customer needs: it can be optionally equipped with a vision.inspection system to remove defective products and is suitable for producing square cold or hot cups.

Remark: The actual production capacity is affected by various of factors and the data above is only for reference.

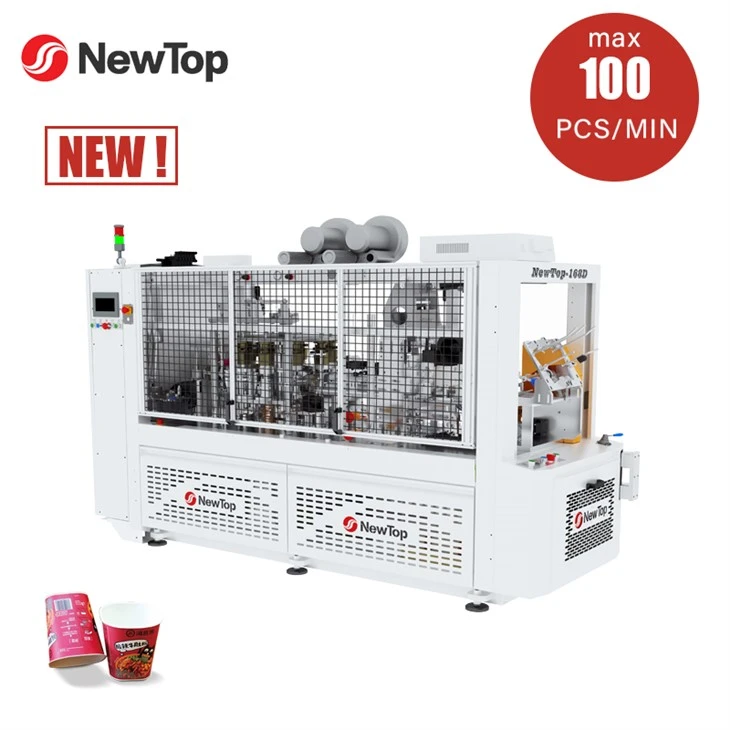

NEWTOP-168D
Weight:	3400 kg
Machine encasement dimensions:	Machine: 3100 x 1600 x 2100mm (collection table 1230 x 610 x 1900mm)
Connecting power:	Three-phase 380V, 31KW
Compressed air:	0.6-0.8MPa, 0.5m³/min
Max production capacity:	100 pcs/min
Paper types:	Single PE/double PE/PLA
Paper thickness:	0.38-0.5mm
Product range:	(D1) ф65-110mm (H) 70-135mm (D2) ф54-85mm (h) 7-10mm
Visual inspection system:	○
Bottom heating:	Assembly●
Long term magazine:	○
Control panel:	10.2 inches

Intelligent Control System

1, Multi-model frame. Use the simple window prompt to guide, select the set model.

2, Flexible parameter settings. You can back up, restore, or restore a parameter to a factory. You can also modify the parameters manually in detail.

3, Flexible encoder origin settings and direction automatic settings and fault self-test. Encoder hardware installation does not need to consider the location, you can simply set the software.

4, Automatically configure the parking bit, less than one lap fast low down. When configured, the machine automatically calculates the inertia distance of the machine, at least one step faster than the position after deceleration.

5, The system of key station sensor signal automatic calculation and identification. Through a simple operation to start the button can be encountered in forming failure, the system automatically tracking the signal according to the sensor, the mold quickly stopped in the middle of the two heaters.

6, Stop the cup automatically removed. After the machine stops abnormally, the system will automatically remove the heater and the bracket position due to the heater burned and the adhesive is not strong cup.

7, Heating system intelligent temperature control. Through the PLC PID control temperature, the user simply select the paper manufacturer, weight, single / double PE, the system will automatically set the corresponding target temperature, and the machine speed changes when the target temperature automatically adjusted. The user can also customize the target temperature control curve.

8, Visual system flaw detection. Automatic identification of paper cup shape, internal, bottom flaws, automatic removal. Unique algorithm, light gray stain recognition is accurate and stable. A key to quickly set the parameters, but also can modify each parameter in detail. The system supports internal network monitoring output report.

9, Hardware monitoring system. Plc output points, relays, contactors, plc and touch screen, plc and computer, plc with the expansion of the line real-time monitoring, abnormal alarm in the touch screen prompts the cause of the malfunction. Detailed hardware and software failure information, the user according to the prompts to easily troubleshoot.

10, The system supports remote upgrade. Plc and touch screen through high-speed Ethernet connection, you can modify the plc and touch screen ip address, through NAT or other service providers to remotely upgrade.
