NEWTOP-FB158SV1
|
1. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year. 2. All parts on forming table are easy to access for maintenance. 3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil. |
1. Production output up to86,400 cups per shift (8 hours), up to 6.6 million cups per month (3 shifts). 2. Percentage of pass is higher than 99% under normal production. 3. One operator can handle several machines at the same time. |
Mechanical Quality Guarantee
Production Efficiency
Mechanical Behavior

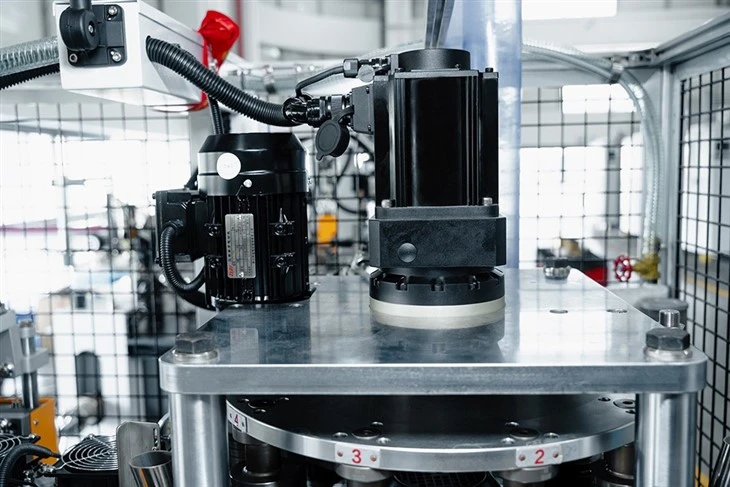

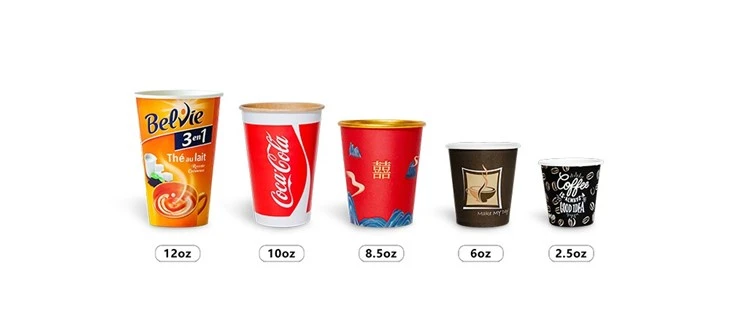

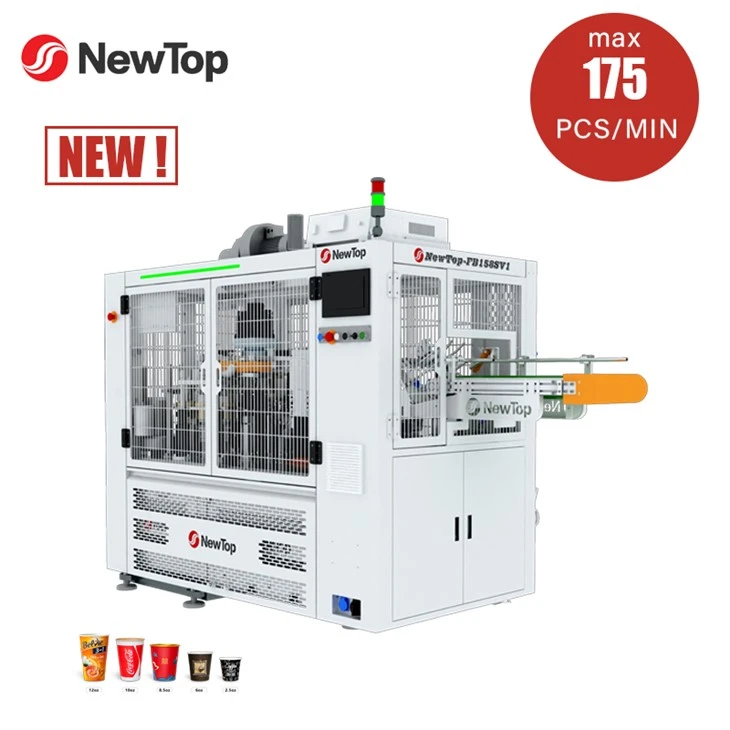

The NEWTOP-FB158SV1 servo paper cup machine is a fully upgraded next-generation servo paper cup forming equipment. It features core digital servo control technology, deeply integrating real-time Ethernet synchronization, electronic cams, and a common DC bus control scheme. The machine separates the bottom heating drive from the punching die drive, and its exterior uses a sheet metal body with a mesh door structure to improve overall cooling and operational safety. y.This machine is good for making 2.5-12oz paper cups, and the production speed can reach up to 175pcs/min.
|
NEWTOP-FB158SV1 |
|
|
Weight: |
2500 kg |
|
Machine encasement dimensions: |
2300 x 1600 x 2000mm (collection table 1230 x 610 x 1900mm) |
|
Connecting power: |
Three-phase 380V, 22KW |
|
Compressed air: |
0.5-0.7MPa, 0.3m³/min |
|
Production capacity: |
168 pcs/min |
|
Paper types: |
Single PE/Double PE |
|
Paper thickness: |
0.22-0.45mm |
|
Product range: |
(D1) ф50-85mm (H) 40-110mm (D2) ф35-60mm (h) 5-8mm |
|
Visual inspection system: |
○ |
|
Bottom heating: |
Assembly● |
|
Long term magazine: |
○ |
|
Control panel: |
7 inches |
